Dog Skeleton: Canine Skeletal Anatomy, Growth Plate Development, and Orthopedic Health

Dog Skeleton: Canine Skeletal Anatomy, Growth Plate Development, and Orthopedic Health

🐕
Reviewed by a Doctor of Veterinary Medicine (DVM)
Veterinary Orthopedics and Internal Medicine
The canine skeleton is one of the most clinically significant organ systems in veterinary practice. It determines locomotive capacity, shapes the physical proportions that define breed, provides the structural housing for every organ system, and represents the site of some of the most common and most expensive conditions veterinarians treat – developmental orthopedic disease, degenerative joint disease, fractures, and bone neoplasia. Understanding skeletal anatomy is not merely academic for dog owners: knowledge of growth plate physiology informs exercise guidelines during puppyhood; knowledge of breed-specific skeletal predispositions guides preventive care decisions; and recognizing early signs of skeletal pain – gait changes, reluctance to rise, altered posture – determines whether a dog receives timely intervention for conditions that worsen significantly without treatment. This article provides a clinically grounded overview of canine skeletal anatomy, developmental physiology, orthopedic conditions by anatomical region, and the evidence base for skeletal health maintenance.

Key Takeaways

  • The adult dog skeleton contains approximately 319 bones (compared to 206 in adult humans), organized into two functional divisions: the axial skeleton (skull, vertebral column, ribs, sternum – approximately 134 bones) and the appendicular skeleton (forelimbs, hindlimbs, and their girdles – approximately 185 bones). Dogs have several skeletal features that differ markedly from humans: they lack a clavicle (collarbone), which allows the forelimbs to rotate freely inward without restriction and contributes to the reaching stride length; they have a dew claw (vestigial first digit) on the forelimb and sometimes the hindlimb that serves limited function in most breeds but is a common source of injury in working dogs; and their patella (kneecap) is held in a groove (trochlear groove) by soft tissue rather than by the bony architecture alone, making patellar luxation – where the kneecap slips out of its groove – one of the most prevalent orthopedic conditions in small-breed dogs.
  • Growth plates (physes) are cartilaginous regions at the ends of long bones where bone lengthening occurs during development. In dogs, growth plates close at ages that vary by bone and by breed size: in small breeds, most physes close between 6 and 9 months; in giant breeds, some physes remain open until 18 months or later. Before closure, growth plates are structurally weaker than the surrounding mature bone – they are the site of Salter-Harris fractures in young dogs after trauma, and they are susceptible to damage from excessive concussive loading. This is the physiological rationale behind veterinary recommendations to avoid high-impact activities (jumping, running on hard surfaces, stair climbing repeatedly) in large and giant breed puppies until their physes have closed, typically confirmed by radiographs rather than assumed from age alone.
  • Canine skeletal proportions vary more across the species than in any other domesticated mammal. Selective breeding has produced extremes from the chondrodystrophic (achondroplastic) body type of Basset Hounds, Dachshunds, and French Bulldogs – where long bone growth is truncated by abnormal cartilage development, producing short curved limbs on a long body – to the deep-chested, long-limbed build of Greyhounds and Great Danes. These breed-specific conformations are directly linked to breed-specific orthopedic disease prevalence: Dachshunds have a 10-12% lifetime prevalence of intervertebral disc disease (IVDD) related to their chondrodystrophic spinal anatomy; Great Danes have markedly elevated rates of osteosarcoma; German Shepherds and Labrador Retrievers lead in hip dysplasia prevalence. Owners of high-predisposition breeds benefit from understanding these structural risk factors to make informed decisions about exercise, weight management, and screening.
  • Osteoarthritis (degenerative joint disease, DJD) is the most prevalent skeletal condition in dogs by disease burden, affecting an estimated 20% of dogs over one year of age and more than 80% of dogs over 8 years of age in some studies. It develops secondary to joint instability (as in hip dysplasia or cruciate ligament rupture), abnormal conformation, or simply from cumulative wear over time. Pain from osteoarthritis in dogs is frequently under-recognized because dogs rarely vocalize chronic pain and often show only subtle behavioral changes – reluctance to climb stairs, altered gait, changes in play behavior, or difficulty rising after rest. Pain recognition tools including the Helsinki Chronic Pain Index and Liverpool Osteoarthritis in Dogs (LOAD) questionnaire have been developed specifically to help owners identify DJD-associated pain in their dogs. Early veterinary intervention – weight management, appropriate exercise modification, joint-supportive nutraceuticals, and when indicated pharmaceutical pain management – significantly improves outcomes and quality of life.
  • Bone is living tissue maintained by the continuous activity of two cell populations: osteoblasts (bone-forming cells) and osteoclasts (bone-resorbing cells). The balance between these populations determines bone density throughout life and responds to mechanical loading, nutritional status, and hormonal signals. This has direct practical implications: appropriate weight-bearing exercise throughout life maintains bone mineral density; obesity places pathological mechanical stress on joint surfaces; and nutritional imbalances – particularly calcium-phosphorus ratio disturbances – during growth can produce skeletal developmental disease. Large and giant breed puppies are particularly susceptible to nutritional skeletal disease because their rapid growth rate creates high mineral demands; feeding adult food or calcium-supplementing a complete puppy food disrupts the calcium-phosphorus balance and is associated with osteochondrosis dissecans (OCD) and other developmental orthopedic diseases. Puppies of large and giant breeds should be fed diets specifically formulated for large breed puppies, not generic puppy foods, which may deliver excessive calcium relative to phosphorus.

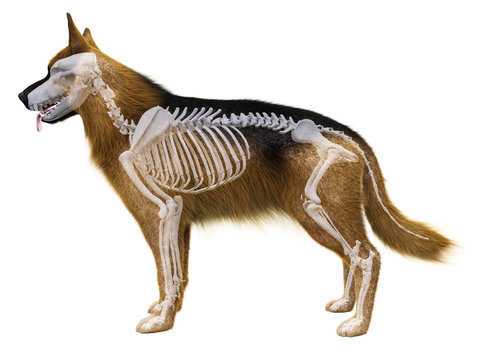

Skeletal Anatomy Overview: Axial and Appendicular Divisions

Axial Skeleton

The axial skeleton forms the central structural core of the dog and consists of the skull, vertebral column, ribcage, and sternum. The vertebral column typically comprises 7 cervical, 13 thoracic, 7 lumbar, 3 fused sacral, and a variable number of coccygeal (tail) vertebrae – usually 20-23 in tailed breeds, though this varies considerably. Between adjacent vertebrae lie intervertebral discs, fibrocartilaginous structures that act as shock absorbers and allow spinal flexibility. In chondrodystrophic breeds, these discs undergo premature calcification (Hansen Type I disc disease), predisposing to acute disc herniation. In non-chondrodystrophic breeds, the outer annulus fibrosus degenerates over time (Hansen Type II), typically causing a more gradual onset of spinal pain and neurological signs.

Appendicular Skeleton

The appendicular skeleton encompasses the forelimbs and hindlimbs with their supporting girdles. The forelimb connects to the thorax via the scapula (shoulder blade) and a muscular attachment rather than a bony joint, since dogs lack the clavicle present in humans and cats. This muscular attachment allows the forelimb to act as a shock-absorbing spring during locomotion. The hindlimb connects to the axial skeleton via the pelvis at the sacroiliac joint – a more rigid bony connection that transmits the propulsive force generated by the hindquarters during locomotion.

Bone Count and Structural Features by Region

Region Key Bones Approximate Count Clinically Notable Features
Skull Cranium, mandible, maxilla, nasal, frontal, temporal, zygomatic, hyoid bones ~50 Brachycephalic skull in flat-faced breeds causes soft palate elongation, stenotic nares, narrow trachea; extreme conformation requires surgical correction in many dogs
Vertebral column Cervical (7), thoracic (13), lumbar (7), sacral (3 fused), coccygeal (variable) ~50+ (incl. tail) Intervertebral discs between each pair; hemivertebrae (wedge-shaped vertebrae) common in screw-tailed brachycephalic breeds, causing spinal instability
Thorax (ribs + sternum) 13 pairs of ribs, sternum (manubrium, body, xiphoid) ~30 Pectus excavatum (funnel chest deformity) occurs in some breeds; rib fractures common in trauma
Forelimb Scapula, humerus, radius, ulna, carpals (7), metacarpals (5), phalanges ~45 per limb Fragmented coronoid process and osteochondrosis dissecans are elbow developmental diseases common in large breeds; radius curvus deformity from premature physeal closure
Hindlimb Pelvis (ilium/ischium/pubis), femur, patella, tibia, fibula, tarsals (7), metatarsals (4-5), phalanges ~45 per limb Hip dysplasia affects acetabulum and femoral head; cruciate ligament rupture (CrCL tear) is most common orthopedic injury; patellar luxation common in small breeds

Skeletal Development and Growth Plate Physiology

Long bone growth in dogs occurs at the physis (growth plate), a cartilaginous zone located at each end of long bones (and sometimes in the center of long bones as a separate diaphyseal growth center). The physis is organized into distinct histological zones – reserve cartilage, proliferating cartilage, hypertrophic cartilage, and the zone of calcification and ossification – that function as an assembly line converting cartilage to new bone. This process is driven by growth hormone and insulin-like growth factor-1 (IGF-1) and regulated by thyroid hormone and sex steroids.

Growth plate closure timing varies by bone and by breed size and is a key clinical parameter for puppyhood exercise decisions:

Growth Plate Location Small Breeds (closure) Large Breeds (closure) Giant Breeds (closure)
Distal radius / ulna 6-8 months 10-12 months 14-16 months
Distal femur 6-8 months 10-12 months 14-18 months
Proximal tibia 7-9 months 11-14 months 15-18 months
Femoral head (capital physis) 5-7 months 9-11 months 12-14 months
Humeral head 6-8 months 10-12 months 14-16 months
Practical implication for large and giant breed puppies
High-impact activities – sustained running on hard surfaces, jumping from heights, repeated stair climbing – place compressive and shear forces on open growth plates. In giant breed dogs whose physes may remain open until 16-18 months, conservative exercise (leash walks, free play on soft surfaces, avoidance of forced repetitive impact) is recommended until radiographic growth plate closure is confirmed. Exercise restriction does not mean inactivity; controlled walking and swimming (non-weight-bearing impact) support muscle development without loading open physes.

Breed-Specific Skeletal Conformation and Associated Risk

Conformation Type Examples Skeletal Features Associated Conditions
Chondrodystrophic Dachshund, Basset Hound, French Bulldog, Corgi, Shih Tzu Short, curved forelimbs; elongated spine; premature disc calcification; abnormal cartilage maturation IVDD (Hansen Type I); elbow incongruity; medial patellar luxation
Giant breed Great Dane, Saint Bernard, Irish Wolfhound, Mastiff Rapid skeletal growth during puppyhood; high lean body mass; deep chest Osteochondrosis dissecans (OCD); hip dysplasia; dilated cardiomyopathy (indirectly); osteosarcoma; hypertrophic osteodystrophy (HOD)
Deep-chested, long-limbed Greyhound, Doberman, Weimaraner, Standard Poodle Long limbs; narrow thorax; prominent keel chest Osteosarcoma; gastric dilatation-volvulus (GDV, not directly skeletal but related to thoracic conformation)
Brachycephalic Bulldog, Pug, Boston Terrier, Shih Tzu, Boxer Compressed facial skeleton; shortened skull base; hemivertebrae in tail region; shallow acetabula in some Brachycephalic obstructive airway syndrome (BOAS); hemivertebrae-related myelopathy; hip dysplasia in Bulldogs
Small breed Chihuahua, Yorkshire Terrier, Pomeranian, Maltese, Toy Poodle Small patella and shallow trochlear groove; medial tibial rotation tendency; fragile long bones Medial patellar luxation (MPL grades I-IV); Legg-Calve-Perthes disease; fractures from minor trauma; atlantoaxial instability
Athletic, medium build Labrador Retriever, Golden Retriever, German Shepherd Well-muscled hindquarters; variable hip conformation quality; high physical activity levels Cranial cruciate ligament (CrCL) rupture; hip dysplasia; elbow dysplasia (Labs and Goldens); degenerative myelopathy (GSDs)

Common Skeletal Conditions by Anatomical Region

Spine

Intervertebral disc disease (IVDD) is the most common spinal condition in dogs and the most prevalent cause of spinal pain and neurological deficits. Hansen Type I disc disease (common in chondrodystrophic breeds) presents acutely, often with sudden onset of spinal pain, ataxia, or paralysis. Hansen Type II (common in non-chondrodystrophic breeds) presents more insidiously with progressive hindlimb weakness. Lumbosacral stenosis (cauda equina syndrome) affects large and working breed dogs and causes lower back pain, hindlimb lameness, and sometimes urinary or fecal incontinence. Spondylosis deformans (ventral osteophyte bridging between vertebral bodies) is a common radiographic finding in older dogs and usually requires no specific treatment unless it restricts motion significantly.

Hip

Hip dysplasia (canine hip dysplasia, CHD) is a developmental condition in which the femoral head and acetabulum do not develop congruently, producing a loose, shallow joint that generates abnormal contact stresses and progresses to osteoarthritis. It has both genetic and environmental determinants. Diagnosis requires radiographs (standard ventrodorsal hip-extended view; OFA or PennHIP protocols for breeding assessment). Management ranges from conservative (weight management, controlled exercise, NSAIDs, joint supplements) to surgical (juvenile pubic symphysiodesis in young puppies, triple pelvic osteotomy, femoral head and neck ostectomy, total hip replacement).

Stifle (Knee)

Cranial cruciate ligament (CrCL) rupture is the most common cause of hindlimb lameness in dogs and the most frequent orthopedic surgery performed in veterinary practice. Unlike the acute athletic injuries that cause ACL tears in humans, canine CrCL rupture typically results from progressive ligament degeneration – the ligament weakens over time and eventually fails, sometimes from a minor physical trigger. Surgical stabilization (TPLO – tibial plateau leveling osteotomy; TTA – tibial tuberosity advancement; or lateral suture techniques) is the standard of care for active dogs of any size. Medial patellar luxation (MPL) is graded I-IV based on reducibility and frequency; grades III and IV typically require surgical correction (trochleoplasty and tibial tuberosity transposition).

Elbow

Elbow dysplasia is a collective term for developmental conditions of the elbow joint including fragmented medial coronoid process (FMCP), osteochondrosis dissecans of the medial humeral condyle (OCD), and ununited anconeal process (UAP). These conditions are common in large breeds (Labrador Retrievers, Golden Retrievers, German Shepherds, Bernese Mountain Dogs, Rottweilers) and produce forelimb lameness, pain on elbow extension, and progressive arthritis. Diagnosis requires radiographs and often CT for complete assessment. Treatment is surgical for most cases.

Bone pain is almost always underestimated in dogs
Dogs rarely vocalize chronic skeletal pain. Behavioral signs of skeletal or joint pain include: reluctance to climb stairs or jump; slower to rise from rest; changes in gait (shortened stride, head-bobbing lameness); reduced activity or play drive; behavioral changes including increased irritability or withdrawal; licking or chewing at a limb; muscle atrophy over a painful joint. A dog that is “slowing down with age” should receive a thorough orthopedic evaluation rather than being assumed to be simply aging – treatable orthopedic pain is one of the most common conditions misattributed to normal aging in dogs over 7 years old.

Skeletal Nutrition and Bone Health

Bone is a dynamic tissue requiring adequate intake of calcium, phosphorus, vitamin D, and protein. The calcium-to-phosphorus ratio (Ca:P) in the diet is as important as absolute mineral content: the appropriate ratio for growing dogs is approximately 1.2:1 to 1.8:1. Disruption of this ratio – through excessive calcium supplementation of an already-balanced diet, or through feeding diets with inverted Ca:P ratios (as can occur with all-meat raw diets) – produces skeletal developmental disease even when total calcium intake appears adequate.

Nutrient / Factor Role in Skeletal Health Deficiency Effect Excess Effect
Calcium Primary mineral component of hydroxyapatite (bone matrix) Nutritional secondary hyperparathyroidism; pathological fractures Disrupted Ca:P balance; osteochondrosis; reduced zinc absorption
Phosphorus Bone matrix component; ratio with calcium is critical Poor bone mineralization; muscle weakness Inversely raises PTH; calcium resorption from bone
Vitamin D Regulates intestinal calcium absorption and renal calcium retention Rickets (rare in dogs fed commercial diets) Soft tissue calcification; hypercalcemia
Protein Collagen matrix formation; osteoblast activity substrate Reduced bone mass and strength; poor fracture healing No documented skeletal toxicity at physiological protein intakes
Body weight Appropriate loading maintains bone mineral density; obesity increases joint stress Disuse osteoporosis (immobility) Pathological joint loading; accelerated OA progression

Common Myths About the Dog Skeleton

Myth

Large breed puppies need extra calcium supplements to support their rapid bone growth.

Fact

Calcium supplementation of a nutritionally complete large breed puppy diet is one of the most well-documented ways to cause skeletal developmental disease in growing dogs. Complete commercial puppy foods formulated for large breeds already deliver the correct calcium-phosphorus ratio at the appropriate concentration for rapid growth. Adding calcium disrupts this ratio and is associated with osteochondrosis dissecans, angular limb deformities, and hypertrophic osteodystrophy. Calcium supplementation is appropriate only in specific clinical scenarios under veterinary supervision – for example, in a dam nursing a large litter with eclampsia risk. For healthy large breed puppies on a balanced diet, additional calcium is contraindicated, not beneficial.

Myth

A dog limping after play is “just sore” and doesn’t need veterinary evaluation.

Fact

Persistent or recurrent lameness – even if it appears mild or resolves with rest – should receive veterinary evaluation because the conditions most likely to cause it (cruciate ligament disease, elbow dysplasia, OCD, patellar luxation, hip dysplasia) are progressive if untreated and have significantly better outcomes when diagnosed early. A dog that is intermittently lame, especially in a large breed during puppyhood or adolescence, may have an active orthopedic condition that worsens with each loading cycle. “He walked it off” is not a reliable indicator that no significant pathology is present. Radiographs taken at first presentation capture conditions at an earlier and more treatable stage than radiographs taken after months of progressive lameness.

Myth

Dogs with hip dysplasia should not exercise.

Fact

Controlled, low-impact exercise is a cornerstone of management for canine hip dysplasia – not exercise avoidance. Periarticular muscle mass supports the loose hip joint and reduces the abnormal contact stresses that drive arthritic progression. Swimming and hydrotherapy (underwater treadmill) provide non-concussive resistance exercise that builds the supporting musculature without loading the articular surfaces through their full range of motion. Walking on soft surfaces (grass, dirt trails) maintains conditioning. High-impact activities (jumping, running on hard surfaces, sudden acceleration) are restricted because they transmit peak forces through already-compromised joint surfaces. A dog with hip dysplasia maintained at lean body weight with appropriate controlled exercise consistently outperforms one kept sedentary.

Frequently Asked Questions

How many bones does a dog have?

Adult dogs have approximately 319 bones, compared to 206 in adult humans. Dogs have more bones primarily because of the vertebrae and phalanges (toe bones) distributed across four limbs rather than two, and because the tail vertebrae add 20+ additional bones in most breeds. Puppies have slightly more bones than adults because some bones that fuse during development – such as the pelvic bones (ilium, ischium, and pubis fuse to form the os coxae) – are initially separate. The exact count varies between individual dogs based on tail length, the presence of dewclaws, and degree of sesamoid bone development.

Do dogs have a collarbone (clavicle)?

Dogs do not have a functional clavicle. In humans, the clavicle connects the shoulder to the sternum and restricts lateral shoulder movement. Dogs have a vestigial clavicle – a small, sometimes fibrocartilaginous or incompletely ossified remnant – embedded in the brachiocephalic muscle at the shoulder, but it makes no bony joint connection. This absence is clinically significant: without a clavicle constraining the scapula, the dog’s forelimb can swing freely inward, contributing to the reaching stride length and shock-absorbing function of the forelimb during locomotion.

At what age is a dog’s skeleton fully developed?

Skeletal maturity varies significantly by body size. Small breeds (under 25 lbs) generally reach skeletal maturity at 9-12 months; medium breeds (25-50 lbs) at 12-14 months; large breeds (50-90 lbs) at 14-16 months; and giant breeds (over 90 lbs) at 16-24 months. The critical threshold for most exercise recommendations is growth plate closure in the major long bones, which can be confirmed by radiographic examination. Dogs continue to add bone mineral density and achieve peak bone mass for a period after growth plate closure, so the skeleton is not at its structural maximum at the point of closure.

What are the signs that a dog has a bone or joint problem?

Signs of skeletal or joint pathology include: lameness or limping (may be subtle – a shortened stride, head-bobbing on forelimb lameness, hip-hiking on hindlimb lameness); reluctance to climb stairs, jump, or rise from lying; stiffness after rest that improves with movement (classic osteoarthritis pattern); reduced activity and exercise tolerance; muscle wasting (atrophy) over an affected limb or over the hindquarters; behavioral changes including reduced play, irritability, or reluctance to be touched; licking or chewing at a specific location on a limb; a visible abnormality such as joint swelling, asymmetry, or unusual limb angle. Any of these findings warrant veterinary evaluation rather than watchful waiting.

Is hip dysplasia detectable in puppies?

Hip dysplasia is a developmental condition that worsens with growth and loading. Some degree of clinical suspicion is possible in puppies (bunny-hopping gait, reluctance to exercise, audible hip clicks), but definitive diagnosis requires radiographs. The PennHIP distraction radiograph method can provide meaningful assessment of hip laxity (the primary risk factor for DJD development) as early as 16 weeks of age and is the preferred early-life screening method. The OFA standard ventrodorsal view is read at 24 months for formal breed registry assessment, but preliminary reads at 6-12 months can inform early management decisions. Breeders of predisposed breeds should screen breeding stock with OFA or PennHIP certification before breeding.

Can a dog’s broken bone heal without surgery?

Some fractures in dogs heal with external coaptation (splints or casts) rather than surgery, but this depends on fracture type, location, and severity. Fractures that may be managed non-surgically include incomplete fractures (greenstick fractures in young dogs), stable fractures in locations amenable to external immobilization, and some rib fractures. The majority of long bone fractures in dogs benefit from surgical stabilization – internal fixation with plates, screws, pins, or external fixators – because rigid fixation allows faster healing, permits earlier weight-bearing, and reduces the muscle atrophy and joint stiffness that accumulate during prolonged external coaptation. The decision between surgical and non-surgical management requires veterinary orthopedic evaluation, and any suspected fracture should be treated as an emergency requiring immediate veterinary attention.

What nutritional factors support skeletal health throughout a dog’s life?

Throughout life, skeletal health is supported by: feeding a complete and balanced diet appropriate to life stage and body size (large breed puppy diets during puppyhood; adult maintenance diets formulated to AAFCO standards after skeletal maturity); maintaining lean body condition (obesity accelerates arthritic progression and increases mechanical joint load); providing controlled weight-bearing exercise to maintain bone mineral density; and for dogs with confirmed joint disease, veterinary-guided use of omega-3 fatty acids (EPA and DHA from marine sources have anti-inflammatory evidence), and glucosamine/chondroitin (limited but plausible evidence for symptom modulation in established OA). Calcium supplementation of balanced diets is not recommended for healthy dogs and is specifically contraindicated in growing large breed puppies.
